new MKS TMPB05-P 20180623 MKSTMPB05 MKSTMPB05-VER1.3ST Treadmill motor Controller Circuit board compatible with JF150

new MKS TMPB05-P 20180623 MKSTMPB05 MKSTMPB05-VER1.3ST Treadmill motor Controller Circuit board compatible with JF150

$68.13 USD
$0.00 USD $68.13 USD
Sale Sold out
Shipping calculated at checkout.
Color

original new TMPB05 MKSTMPB05 treadmill motor controller circuit board compatible with JF150


Please purchase the notes：

Please send us a clear picture of the old controller before / after purchase so that we can check and verify it, especially for the replacement of the controller, to avoid possible incompatibility due to different models of the new controller, thus causes your loss, the trouble you, thanks!



Package include:

MKS TMPB05(original)  / JF150(Replacement)  controller *1pcs

warranty: 3 months


The replacement controller can work good and tested before shipment, free return if this controller not work with your treadmill.


How to determine the failed controller:

E01: communication failure,the individual is a sensor failure;

E02: controller failure, we want to know which detector is broken, if E02 is best to first test the motor to see if there are any problems motor

E03: Sensor fault; general treadmill will turn a few seconds later, there E03;

E04: generally over-current fault, this situation is generally burned components on the controller;

E08: There may be a lift motor control fault.

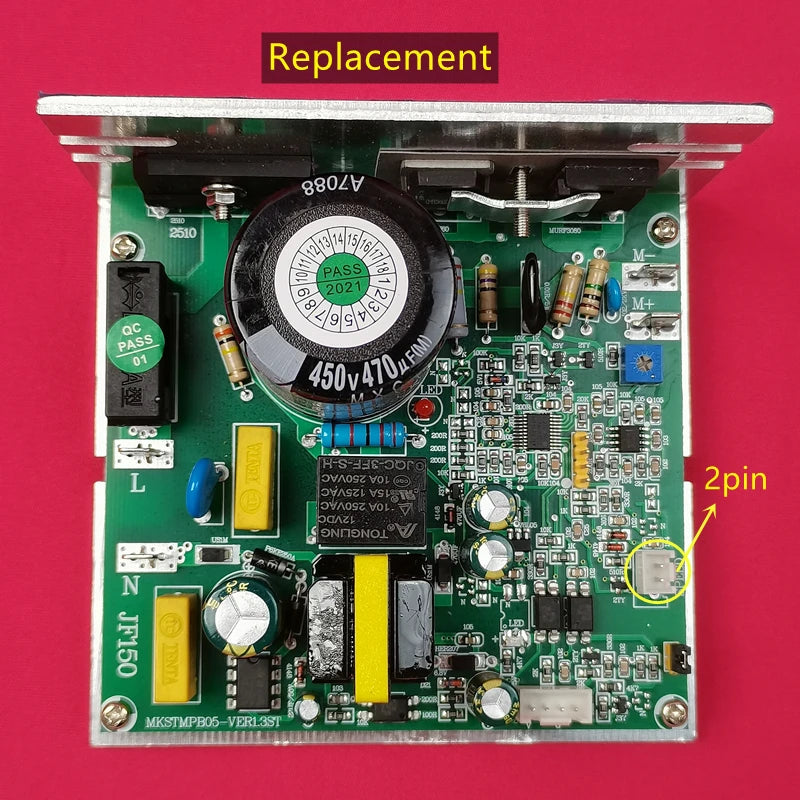

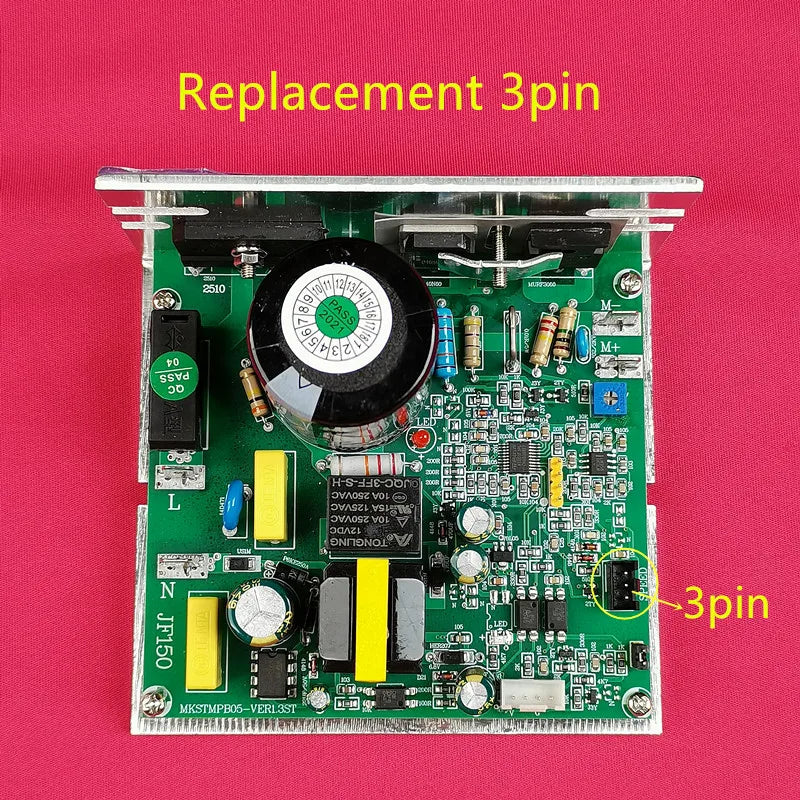

Replacement of MKS TMPB05-P 110-220V ↓

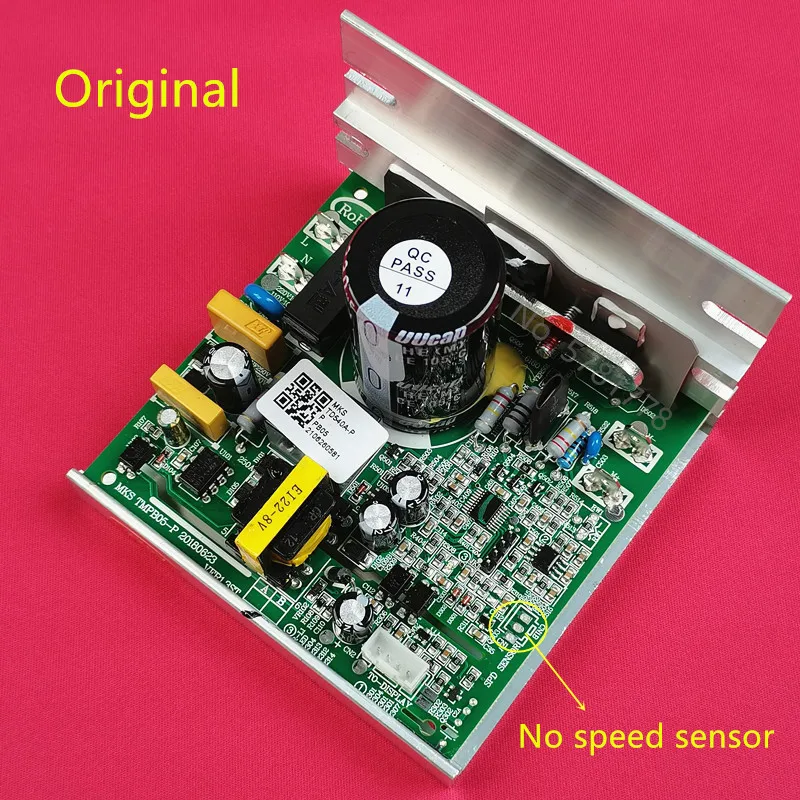

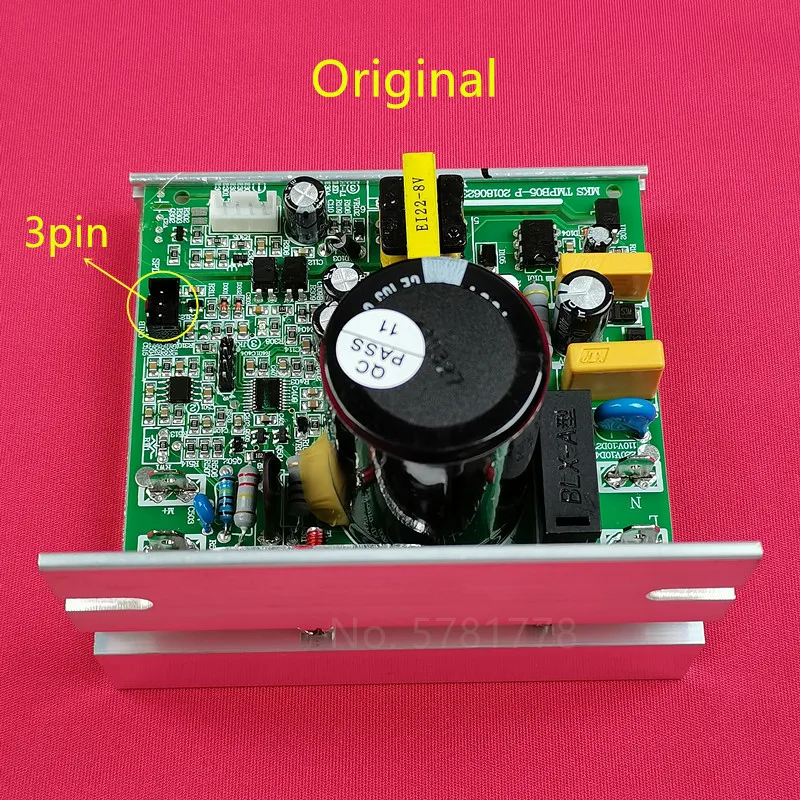

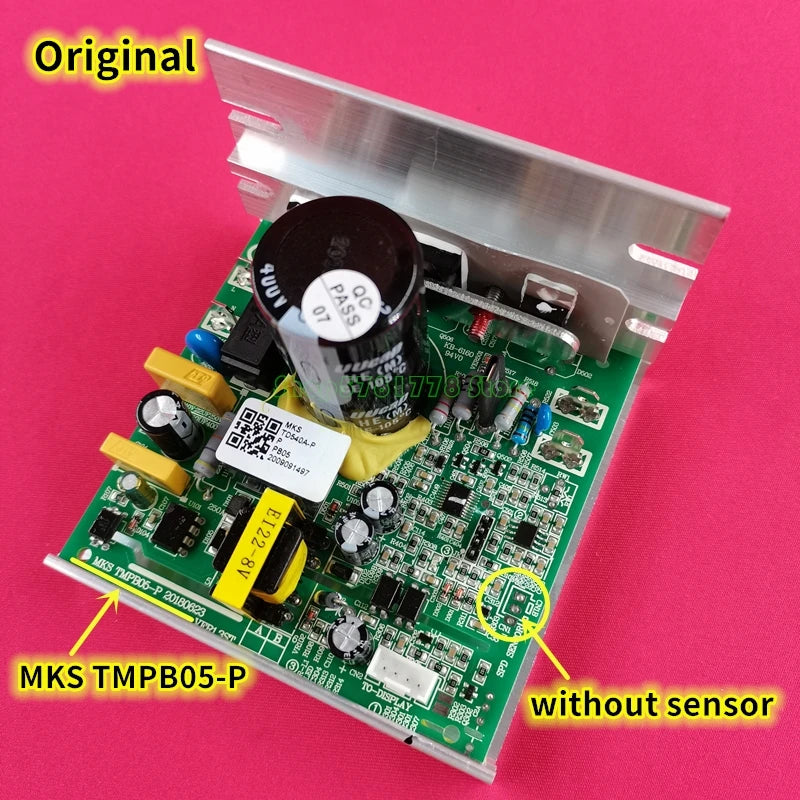

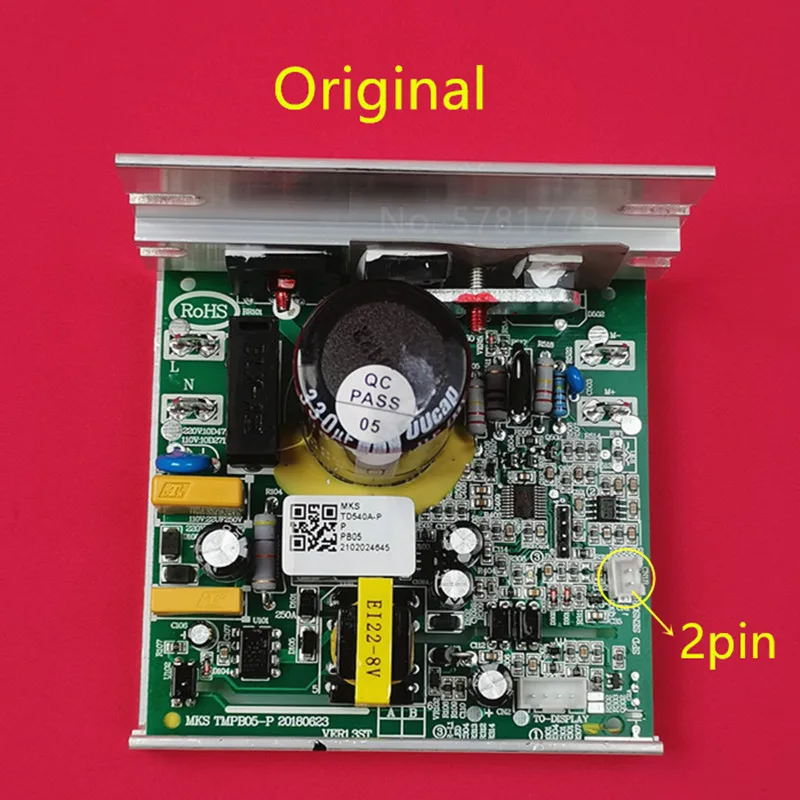

Original controller MKS TMPB05-P 220V ↓




Please make sure that the motor is in working order before placing your order. How to identify whether the motor is in working order: ↓

1.Use 2-3PCS 5# batteries

2.Connect like photo

3.See motor running or not



Error code troubleshooting（Below info for your reference.）：


E01 : communication failure: console board and control board cannot communicate.probably console board issue or control board issue or data cable issue. replace a data cable,checking whether the machine can running? If no, Replace the control board.

E02 : control board or motor issue. Test the motor first to check if the motor can runing normally. If motor is normal, replace the control board.

E03  : 1,Turn on the treadmill , motor running a few seconds then stop and console board shows E03, probably the Speed sensor issue.
2,Turn on the treadmill,motor can't runing and console board shows E03, probably the control board issue .Test the motor first to check if the motor can runing normally. If motor is normal:    1,replace speed sensor; 2,replace control board

E04  : generally over-current fault:components of control board has burned. replace burned components or replace control board.

E05 :Current overload protection or Unstable speed.check the components on control board, if they connect normally? If not, re-plug the components or replace the control board.

E06  :Motor overload.Test the motor first to check if the motor can running normally. If motor is normal, replace the Current limiting resistor on control board or replace whole control board.

E07  :console board issue.replace console board cricuit board or replace data cable.


E08 : There may be a lift motor control fault.le)
