B303S S10 Treadmill Motor Controller B303S S06 for Johnson Tempo TREO T22 T32 T33 T57 T82 Treadmill Control board Circuit board

B303S S10 Treadmill Motor Controller B303S S06 for Johnson Tempo TREO T22 T32 T33 T57 T82 Treadmill Control board Circuit board

$52.11 USD
$0.00 USD $52.11 USD
할인 품절
배송료는 결제 시 계산됩니다.
color
Bundle

B303S S10 Treadmill motor controller for Johnson Tempo TREO T22 T32 T33 T57 T82 treadmill motor Control board driver board mainboard 003


If you need more models for treadmill controller, please contact us, thank you!


important：

1.Please send us a clear picture of the old controller before / after purchase so that we can check and verify it, especially for the replacement of the controller, to avoid possible incompatibility due to different models of the new controller, thus causes your loss, the trouble you, thanks!


2.Please purchase or need to replace the treadmill motor controller to ensure that the motor works normally. If you are not sure whether the motor works normally? (please see below for details on how to test, or please contact us)


Package include:

B303S S10Replacementcontroller *1PCS

warranty:3 months


The goods will be shipped WITH tracking number within 1-7 business working days. after confirmed the payment.thank you.

How to determine the failed controller:
E01: communication failure,the individual is a sensor failure;
E02: controller failure, we want to know which detector is broken, if E02 is best to first test the motor to see if there are any problems motor
E03: Sensor fault; general treadmill will turn a few seconds later, there E03;
E04: generally over-current fault, this situation is generally burned components on the controller;
E08: There may be a lift motor control fault.

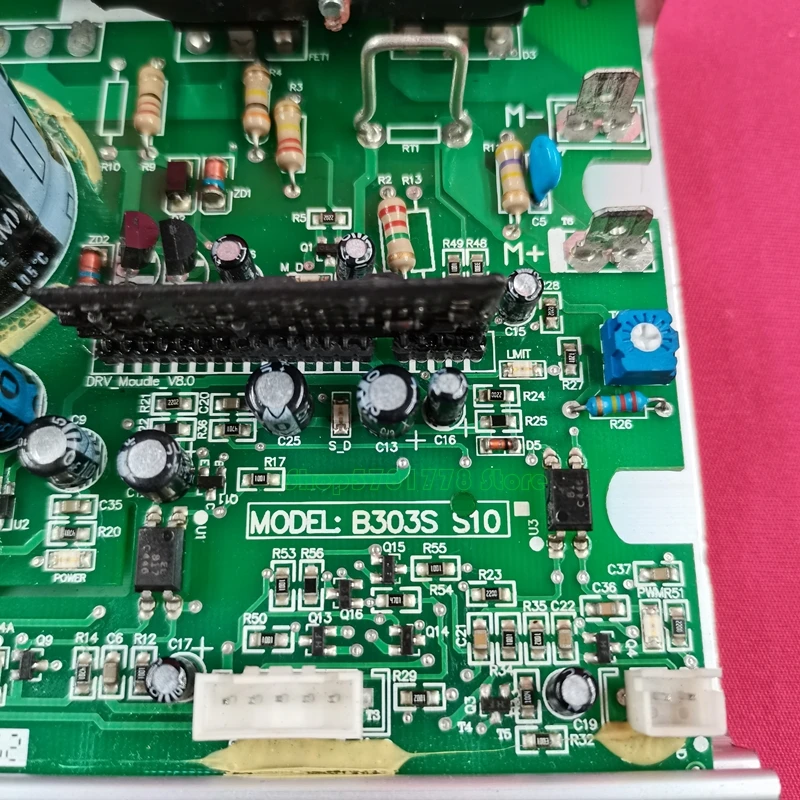

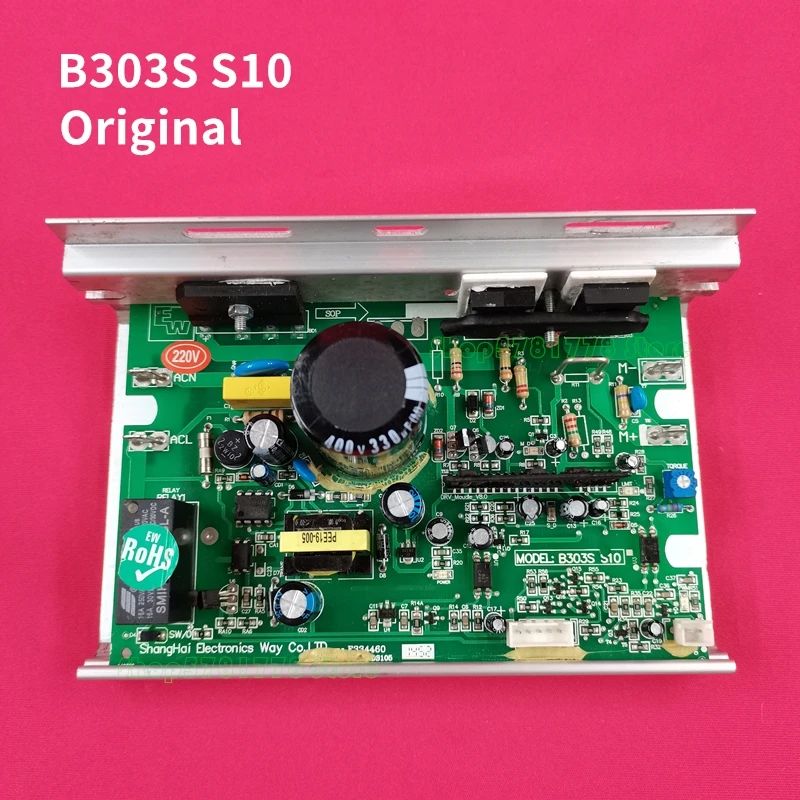

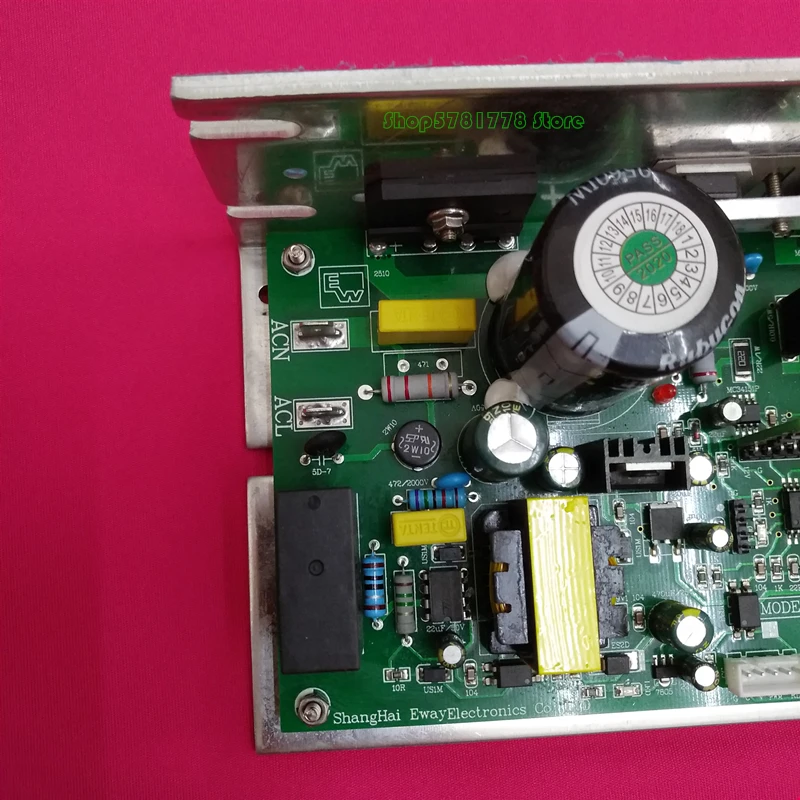

Original controller B303S S10↓

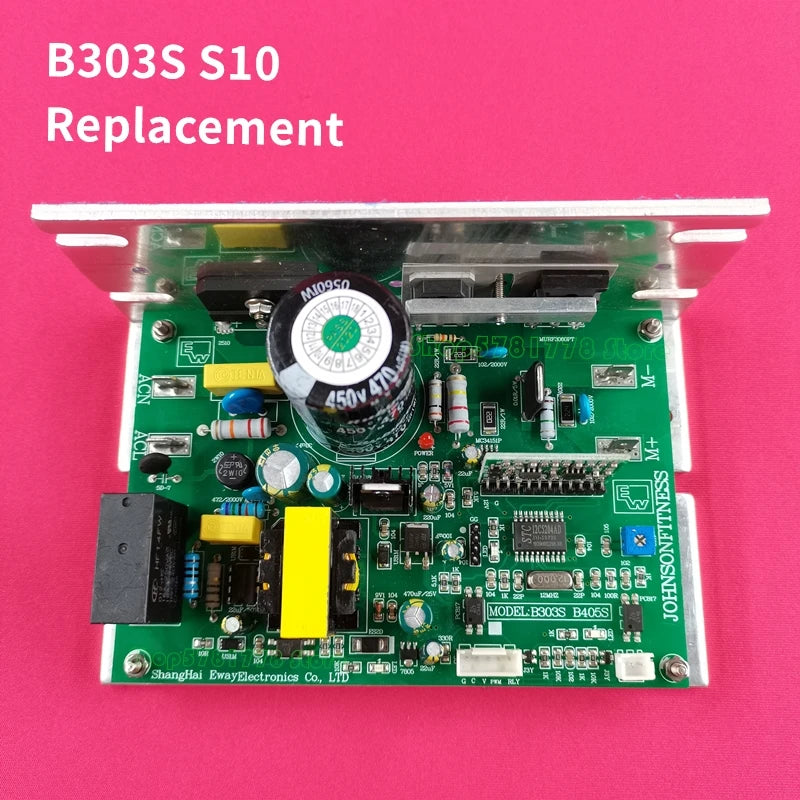

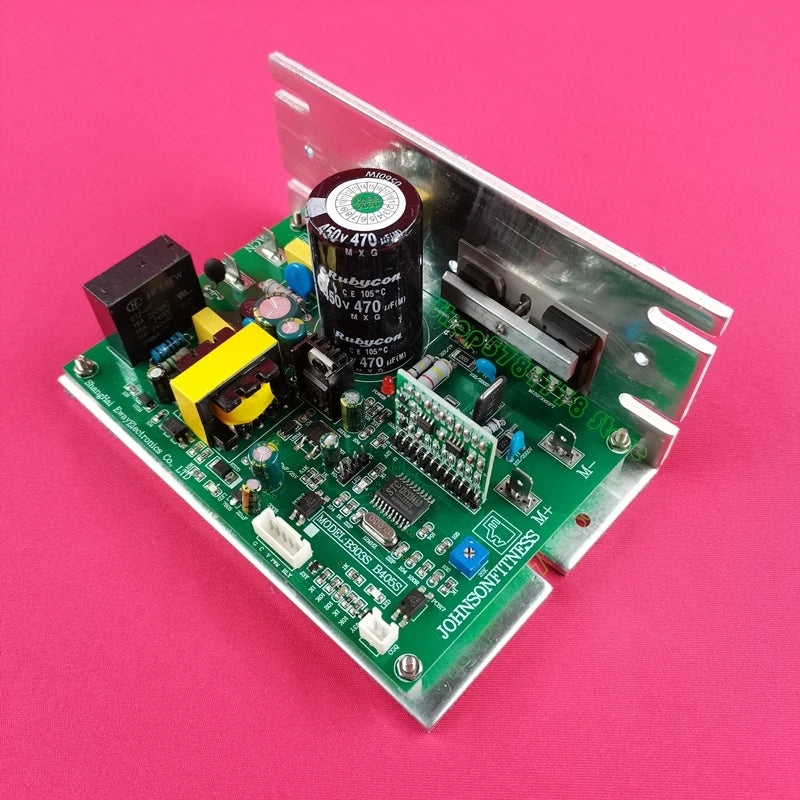

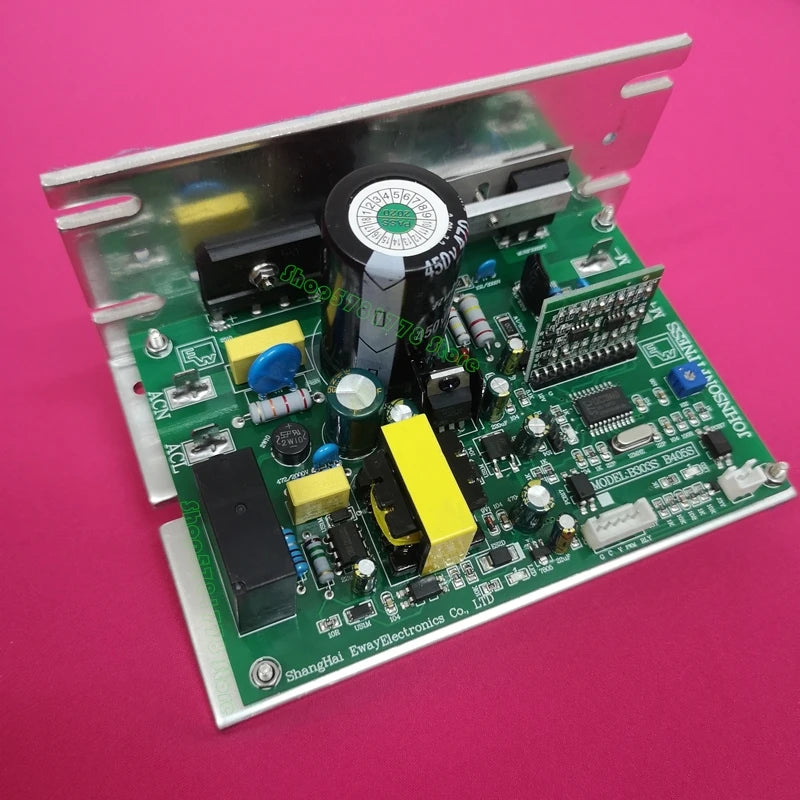

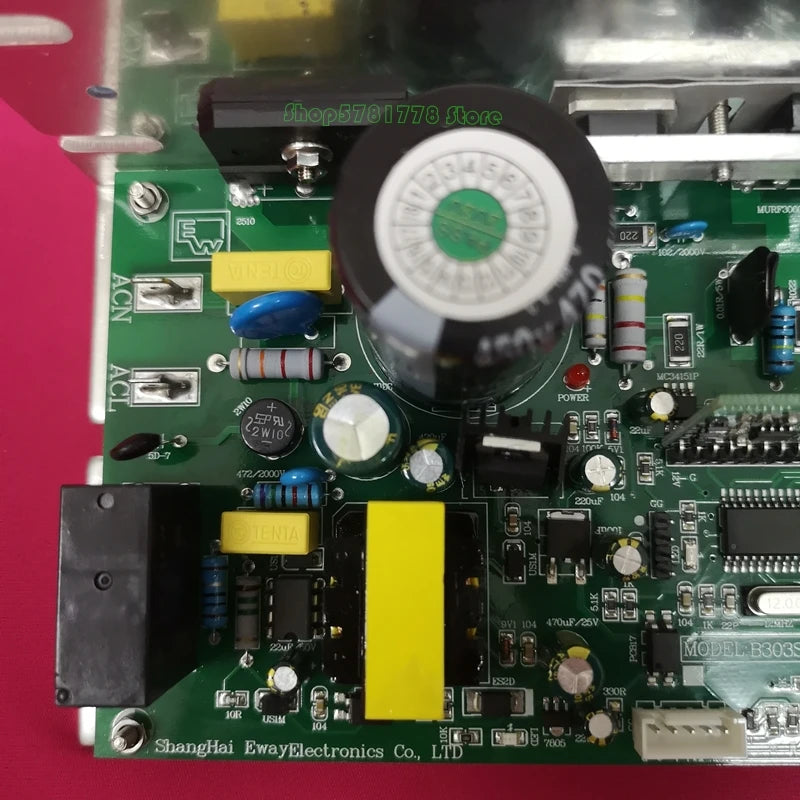

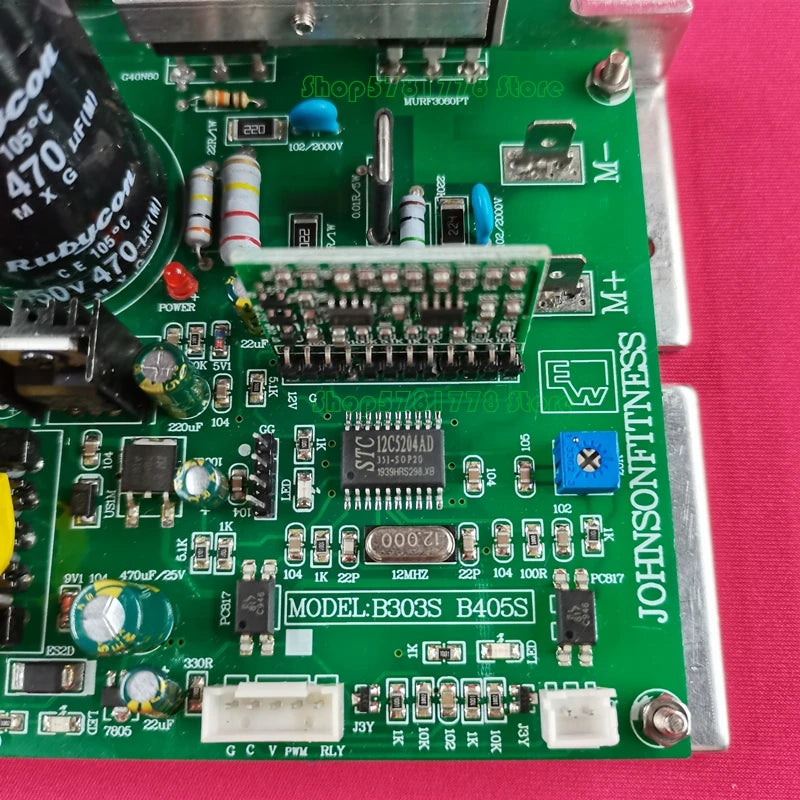

Replacement controller B303S S10 110-220V↓


Controller type discrimination：↓

1 controller part number

2 incline sensor connector ( if available)

3 speed sensor connector ( if available)

4 display connector

5 transformer connector ( if availab）

6 incline motor connector ( if available)

7 IC chips part number ( if available)

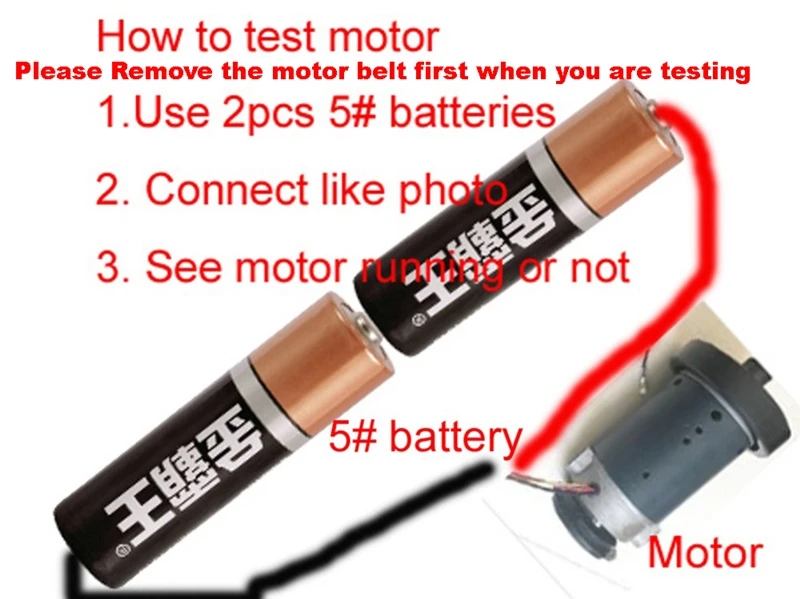

Please make sure that the motor is in working order before placing your order. How to identify whether the motor is in working order: ↓

1.Use 2-3PCS 5# batteries

2.Connect like photo

3.See motor running or not

Error code troubleshooting:

Below info for your reference.

E01 error code: communication failure: console board and control board cannot communicate.probably console board issue or control board issue or data cable issue. replace a data cable,checking whether the machine can running? If no, Replace the control board.
E02 error code: control board or motor issue. Test the motor first to check if the motor can runing normally. If motor is normal, replace the control board.
E03 error code: 1,Turn on the treadmill , motor running a few seconds then stop and console board shows E03, probably the Speed sensor issue.
2,Turn on the treadmill,motor can't runing and console board shows E03, probably the control board issue .Test the motor first to check if the motor can runing normally. If motor is normal:    1,replace speed sensor; 2,replace control board
E04 error code: generally over-current fault:components of control board has burned. replace burned components or replace control board.
E05 error code:Current overload protection or Unstable speed.check the components on control board, if they connect normally? If not, re-plug the components or replace the control board.
E06 error code:Motor overload.Test the motor first to check if the motor can running normally. If motor is normal, replace the Current limiting resistor on control board or replace whole control board.
E07 error code:console board issue.replace console board cricuit board or replace data cable.
E08 error code:There may be a lift motor control fault.
