1 Product descreption
part number: JDYF07L
application: for HORIZON FITNESS 841T
warranty: 3 months

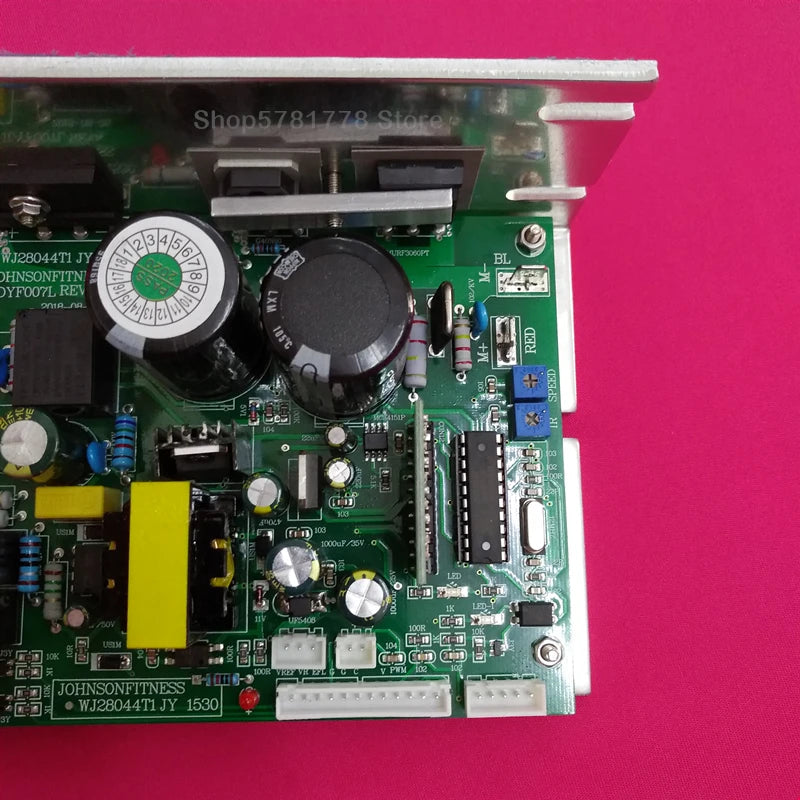

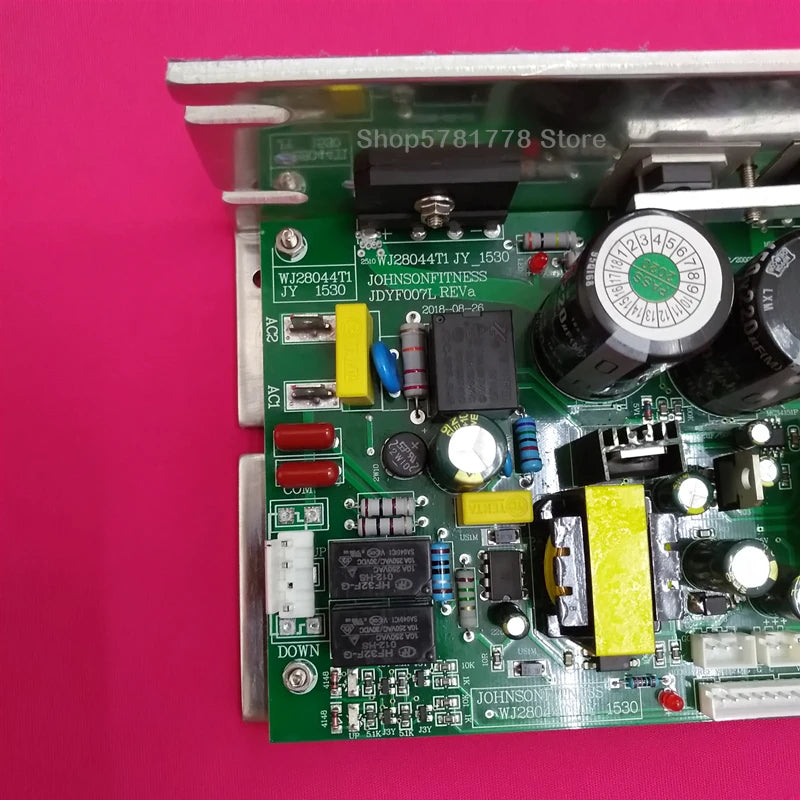

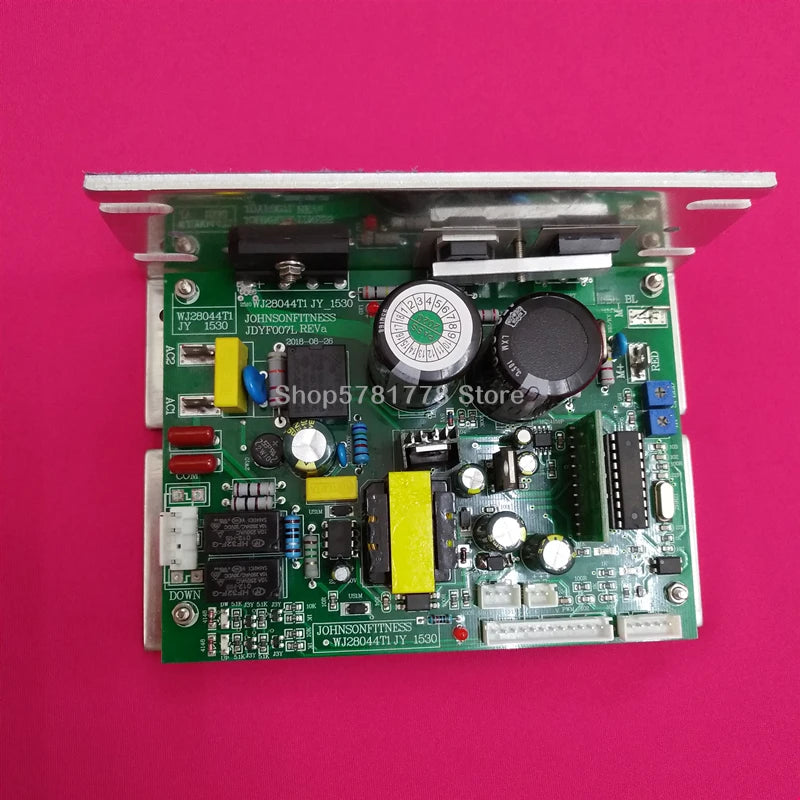

2 Real photo
3 Error code troubleshooting
Below info for your reference.
E01 error code: communication failure: console board and control board cannot communicate.probably console board issue or control board issue or data cable issue. replace a data cable,checking whether the machine can running? If no, Replace the control board.
E02 error code: control board or motor issue. Test the motor first to check if the motor can runing normally. If motor is normal, replace the control board.
E03 error code: 1,Turn on the treadmill , motor running a few seconds then stop and console board shows E03, probably the Speed sensor issue.
2,Turn on the treadmill,motor can't runing and console board shows E03, probably the control board issue .Test the motor first to check if the motor can runing normally. If motor is normal: 1,replace speed sensor; 2,replace control board
E04 error code: generally over-current fault:components of control board has burned. replace burned components or replace control board.
E05 error code:Current overload protection or Unstable speed.check the components on control board, if they connect normally? If not, re-plug the components or replace the control board.
E06 error code:Motor overload.Test the motor first to check if the motor can running normally. If motor is normal, replace the Current limiting resistor on control board or replace whole control board.
E07 error code:console board issue.replace console board cricuit board or replace data cable.
E08 error code: There may be a lift motor control fault.
4 Provide some photos
Please feel free to send us some photos of your original part, so that we can confirm the correct model for you. you can send photos via Ali message
we will check below info from your part's photo,
1 controller part number
2 incline sensor connector ( if available)
3 speed sensor connector ( if available)
4 display connector
5 transformer connector ( if available)
6 incline motor connector ( if available)
7 IC chips part number ( if available)
